Brightek Optoelectronic Co., Ltd.

SIDE LED 4516 RGB

iCLed 4516-B

iCLed 4516-C

SIDE iCLed 4516-A.

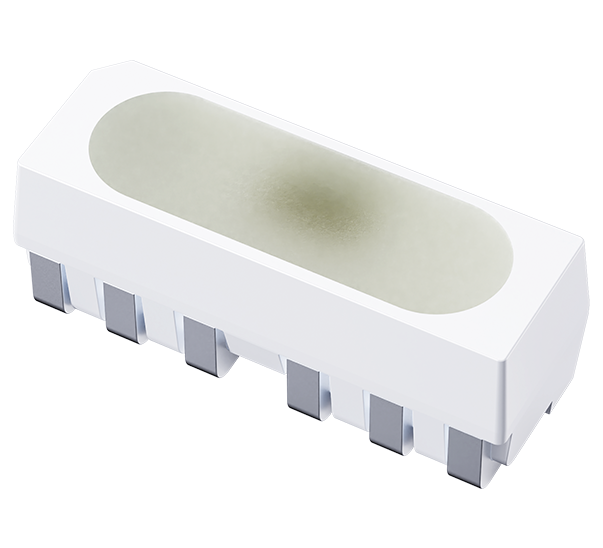

SIDE LED 4516 RGB

Side-view RGB ICLED, ideal for ambient light applications with an optical design that easily couples light into light guides and meets slim requirements.

기타 다운로드 데모 요청하기

제품 성능

품번

이미터 색상

파장

전력

순방향

전류 (I_F)

광속 (Φ_v)

발광

강도 (I_v)

Red

Green

Blue

612-630 nm

565-575 nm

450-480 nm

0.1 W

20 mA

20 mA

20 mA

- lm

- lm

- lm

480 mcd

1760 mcd

300 mcd

120 °

제품 정보

혜택

Side-view RGB ICLED, ideal for ambient light applications with an optical design that easily couples light into light guides and meets slim requirements.

기능

Dual-line signal transmission: Data/Clock

Binning achieved through white mixing

Supports sleep/wake-up mode. In sleep mode, the LED's current is lower than 5uA

MSL Level 3

RoHS compliant

애플리케이션

전자 기술

관련 제품

TOP LED 3528

TOP LED 1608

TOP LED 3433 RGB

TOP LED 1519

문서 및 도구

V64516VGBMFZ1
