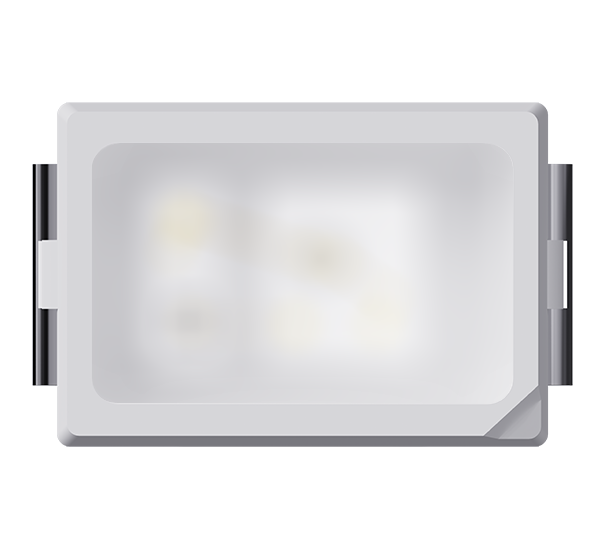

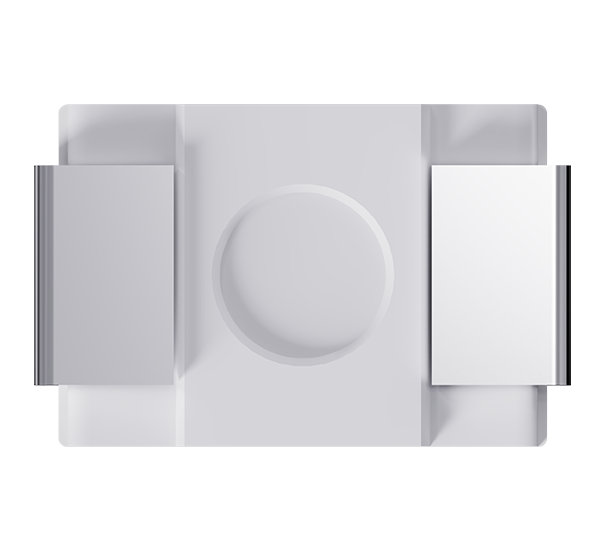

TOP LED 2214

当社のPLCC2製品シリーズは、さまざまな車両条件に適応できる、さまざまな色の発光を提供します。

仕様

6SC2214B12C0CMZ1

製品タイプ

 LEDs

外形寸法 (L x W x H)

 2.2 x 1.4 X 1.3 mm

操作温度

 -40° ~ 105℃

ビーム角

 120 °

発光色

Blue (450-480 nm)

明るさ

電力

光束(Φv)

Blue Typ. - lm

電力

 Typ. 0.1 W



光度 (Iv)

Blue Typ. 270 mcd

順電流 (IF)

Blue Typ. 20 mA

利点

  • 当社のPLCC2製品シリーズは、さまざまな車両条件に適応できる、さまざまな色の発光を提供します。

特徴

Forward current: ≦ 30mA

Typical view angle 50% Iv: 120°

RoHS2.0 and REACH-compliant

Lens color:  water transparent

MSL Level 2a

ESD level 2 kV(HBM)

Reliability Test: AEC Q-102qualified

ドキュメント&ツール

6SC2214B12C0CMZ1
