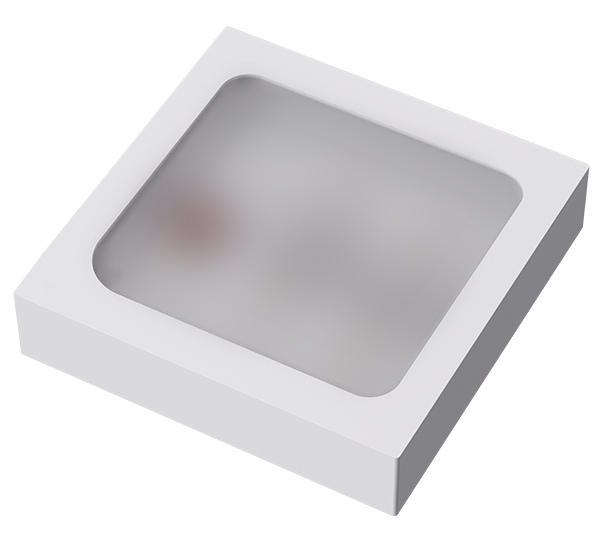

TOP LED 3030 RGB

Elevate your ambiance with our mid-power RGB LED, seamlessly coupling to light tube structures for vibrant lighting.

사양

V63030VGBMLN1

제품 유형

 LED

치수 (L x W x H)

 3 x 3 X 0.65 mm

작동 온도

 -40° ~ 125℃

빔 각도

 120 °

이미터 색상

Red (612-630 nm)

Green (565-575 nm)

Blue (450-480 nm)

밝기

전기

광속 (Φv)

Red Typ. 17 lm

전력

 Typ. 0.5 W

Green Typ. 44 lm

Blue Typ. 10 lm



발광 강도(Iv)

Red Typ. - mcd

순방향 전류 (IF)

Red Typ. 150 mA

Green Typ. - mcd

Green Typ. 150 mA

Blue Typ. - mcd

Blue Typ. 150 mA

혜택

  • Mid power RGB LED for ambient lighting with side coupling to a light tube structure.

기능

0.5W RGB, forward current: ≦ 250mA

Binning by RGB spec

AECQ102 qualified

MSL level 2a

RoHS2.0 and REACH-compliant

문서 및 도구

V63030VGBMLN1
광학 시뮬레이션

V63030VGBMLN1 Instruction Manual Operation Manual.pdf

V63030VGBMLN1_Blue spectrum.xls

V63030VGBMLN1_Blue_10M Rays_ASAP.dis

V63030VGBMLN1_Blue_10M Rays_IESTM25.tm25ray

V63030VGBMLN1_Blue_10M Rays_LightTools.ray

V63030VGBMLN1_Blue_10M Rays_LUCID.ray

V63030VGBMLN1_Blue_10M Rays_Photopia.rir

V63030VGBMLN1_Blue_10M Rays_SimuLux.ray

V63030VGBMLN1_Blue_10M Rays_Speos.ray

V63030VGBMLN1_Blue_10M Rays_TracePro.src

V63030VGBMLN1_Blue_10M Rays_Zemax.sdf

V63030VGBMLN1_Green spectrum.xls

V63030VGBMLN1_Green_10M Rays_ASAP.dis

V63030VGBMLN1_Green_10M Rays_IESTM25.tm25ray

V63030VGBMLN1_Green_10M Rays_LightTools.ray

V63030VGBMLN1_Green_10M Rays_LUCID.ray

V63030VGBMLN1_Green_10M Rays_Photopia.rir

V63030VGBMLN1_Green_10M Rays_SimuLux.ray

V63030VGBMLN1_Green_10M Rays_Speos.ray

V63030VGBMLN1_Green_10M Rays_TracePro.src

V63030VGBMLN1_Green_10M Rays_Zemax.sdf

V63030VGBMLN1_Red spectrum.xls

V63030VGBMLN1_Red_10M Rays_ASAP.dis

V63030VGBMLN1_Red_10M Rays_IESTM25.tm25ray

V63030VGBMLN1_Red_10M Rays_LightTools.ray

V63030VGBMLN1_Red_10M Rays_LUCID.ray

V63030VGBMLN1_Red_10M Rays_LUCID.ray

V63030VGBMLN1_Red_10M Rays_SimuLux.ray

V63030VGBMLN1_Red_10M Rays_Speos.ray

V63030VGBMLN1_Red_10M Rays_TracePro.src

V63030VGBMLN1_Red_10M Rays_Zemax.sdf
