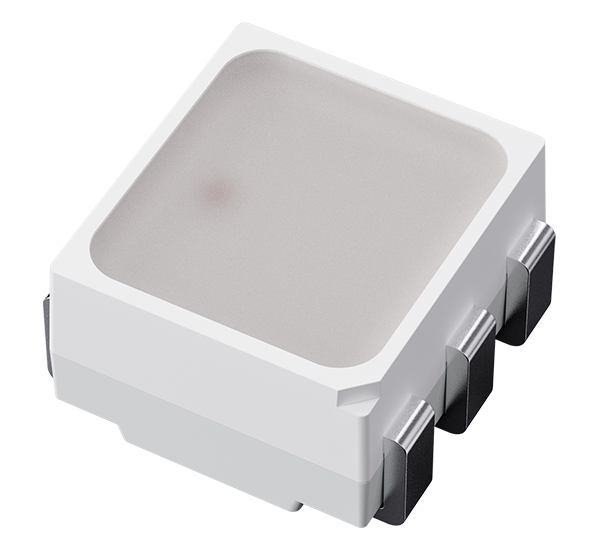

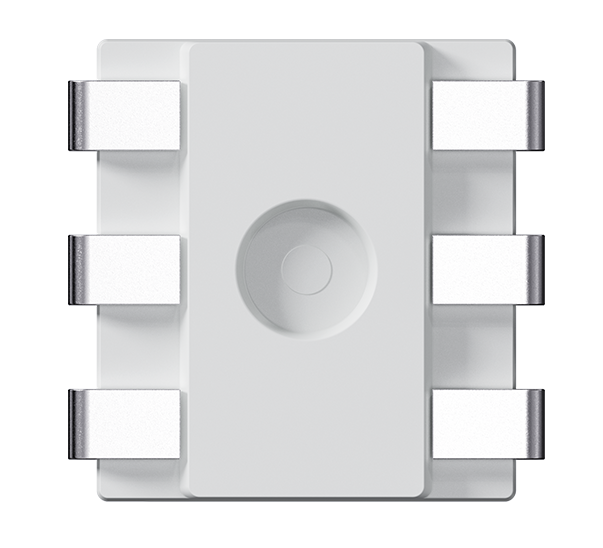

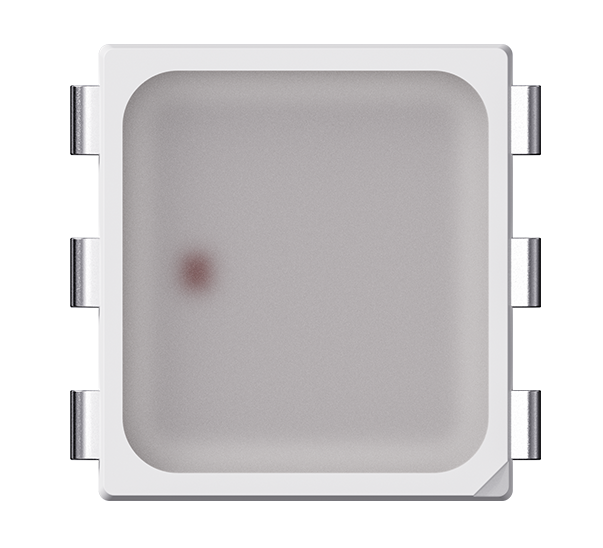

TOP LED 3433 RGB

0.2W PLCC6 RGB series, ideal for creating a variety of colors in ambient lighting.

기타 다운로드 데모 요청하기

사양

V63433VGBMFZ1

제품 유형

 LED

치수 (L x W x H)

 3.4 x 3.3 X 1.9 mm

작동 온도

 -40° ~ 105℃

빔 각도

 120 °

이미터 색상

Red (612-630 nm)

Green (565-575 nm)

Blue (450-480 nm)

밝기

전기

광속 (Φv)

Red Typ. - lm

전력

 Typ. 0.2 W

Green Typ. - lm

Blue Typ. - lm



발광 강도(Iv)

Red Typ. 630 mcd

순방향 전류 (IF)

Red Typ. 20 mA

Green Typ. 2660 mcd

Green Typ. 20 mA

Blue Typ. 420 mcd

Blue Typ. 20 mA

혜택

  • 0.2W PLCC6 RGB series, ideal for creating a variety of colors in ambient lighting.

기능

0.2W PLCC6 3433, forward current: ≦ 50mA

Binning by RGB spec, standard wavelength blue and super red

AECQ102 qualified

MSL level 2a

RoHS2.0 and REACH-compliant

애플리케이션

내장 무드램프

외장 조명

관련 제품

SIDE LED 4516 RGB

TOP LED 3528

TOP LED 1608

TOP LED 1519

문서 및 도구

V63433VGBMFZ1
데이터 시트

V63433VGBMFZ1
CAD 데이터

V63433VGBMFZ1.STEP
광학 시뮬레이션

V63433VGBMFZ1 Instruction Manual Operation Manual.pdf

V63433VGBMFZ1_Blue spectrum.xls

V63433VGBMFZ1_Blue_10M Rays_ASAP.dis

V63433VGBMFZ1_Blue_10M Rays_IESTM25.tm25ray

V63433VGBMFZ1_Blue_10M Rays_LightTools.ray

V63433VGBMFZ1_Blue_10M Rays_LUCID.ray

V63433VGBMFZ1_Blue_10M Rays_Photopia.rir

V63433VGBMFZ1_Blue_10M Rays_SimuLux.ray

V63433VGBMFZ1_Blue_10M Rays_Speos.ray

V63433VGBMFZ1_Blue_10M Rays_TracePro.src

V63433VGBMFZ1_Blue_10M Rays_Zemax.sdf

V63433VGBMFZ1_Green spectrum.xls

V63433VGBMFZ1_Green_10M Rays_ASAP.dis

V63433VGBMFZ1_Green_10M Rays_IESTM25.tm25ray

V63433VGBMFZ1_Green_10M Rays_LightTools.ray

V63433VGBMFZ1_Green_10M Rays_LUCID.ray

V63433VGBMFZ1_Green_10M Rays_Photopia.rir

V63433VGBMFZ1_Green_10M Rays_SimuLux.ray

V63433VGBMFZ1_Green_10M Rays_TracePro.src

V63433VGBMFZ1_Green_10M Rays_Zemax.sdf

V63433VGBMFZ1_Red spectrum.xls

V63433VGBMFZ1_Red_10M Rays_ASAP.dis

V63433VGBMFZ1_Red_10M Rays_IESTM25.tm25ray

V63433VGBMFZ1_Red_10M Rays_LightTools.ray

V63433VGBMFZ1_Red_10M Rays_LUCID.ray

V63433VGBMFZ1_Red_10M Rays_Photopia.rir

V63433VGBMFZ1_Red_10M Rays_SimuLux.ray

V63433VGBMFZ1_Red_10M Rays_Speos.ray

V63433VGBMFZ1_Red_10M Rays_TracePro.src

V63433VGBMFZ1_Red_10M Rays_Zemax.sdf

V63433VGBMFZ1_Green_10M Rays_Speos.ray
