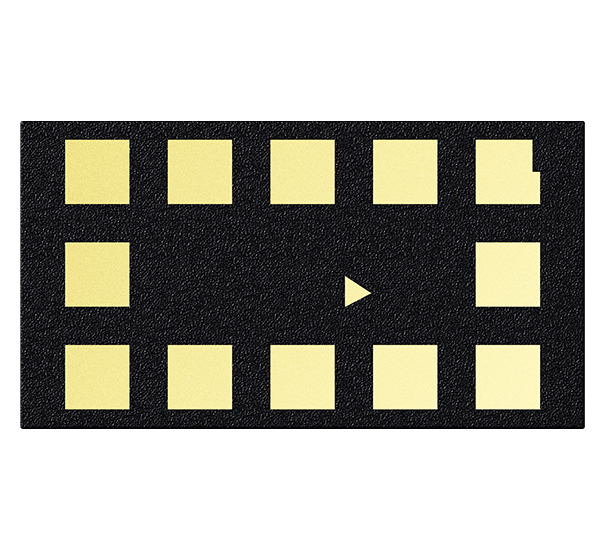

Flat dToF 4424

최대 5미터까지의 절대 거리 측정이 가능하며, 저전력 소비와 클래스 1 눈 안전 기준을 준수합니다.

사양

BC4424AT94S00101

제품 유형

치수 (L x W x H)

4.4 x 2.4 X 1.05 mm

관측시야

25 °

전압

3.5 V

파장 (λP)

940 nm

대기 전류

Typ. 20 μA

작업 거리
90% 화이트 카드

5000 mm

작업 거리
18% 그레이 카드

2800 mm

혜택

  • 최대 5미터까지의 절대 거리 측정이 가능하며, 저전력 소비와 클래스 1 눈 안전 기준을 준수합니다.
