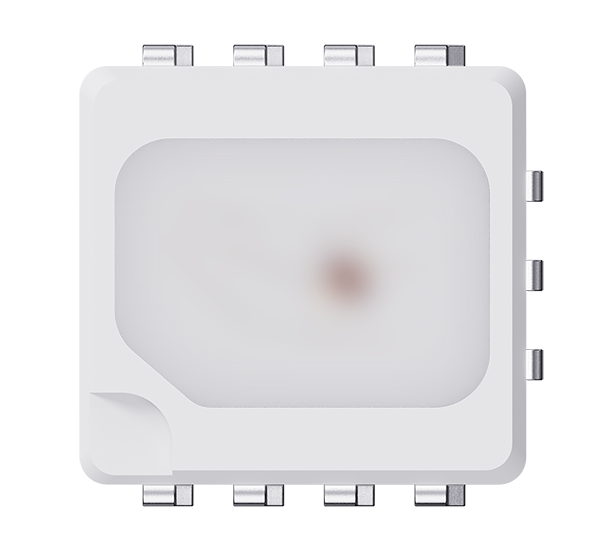

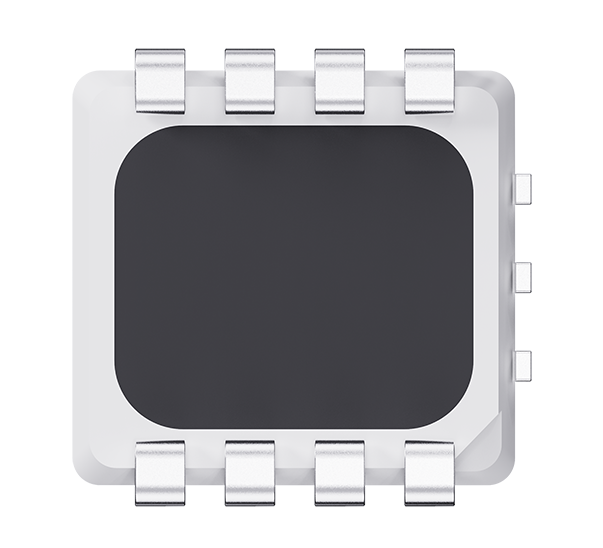

TOP ISELED 3233

TOP ISELED 3233

High-brightness ISELED smart LED solution, single calibrated white bin to offer consistent color performance.

기타 다운로드 데모 요청하기

제품 성능

품번

이미터 색상

파장

전력

순방향

전류 (I_F)

광속 (Φ_v)

발광

강도 (I_v)

PV3233CMTCM20601

Red

Green

Blue

White

612-630 nm

565-575 nm

450-480 nm

-

0.15 W

11 mA

12.7 mA

5.9 mA

31 mA

- lm

- lm

- lm

- lm

560 mcd

1300 mcd

140 mcd

2100 mcd

120 °

제품 정보

혜택

High-brightness ISELED smart LED solution, single calibrated white bin to offer consistent color performance.

기능

8 bits PWM for color modulation, 4 brightness dimming level

Serial communication with ISELED compliance, differential signal

D65 white calibration, one bin

Temperature, built-in diagnosis

AEC-Q100/AEC-Q102 qualified

MSL level 2a

RoHS2.0 and REACH-compliant

애플리케이션

내장 무드램프

내장 조명

외장 조명

관련 제품

ICLED EVO 3838

Mini ICLED 1212

TOP ICLED 3535

ICLED 5050
