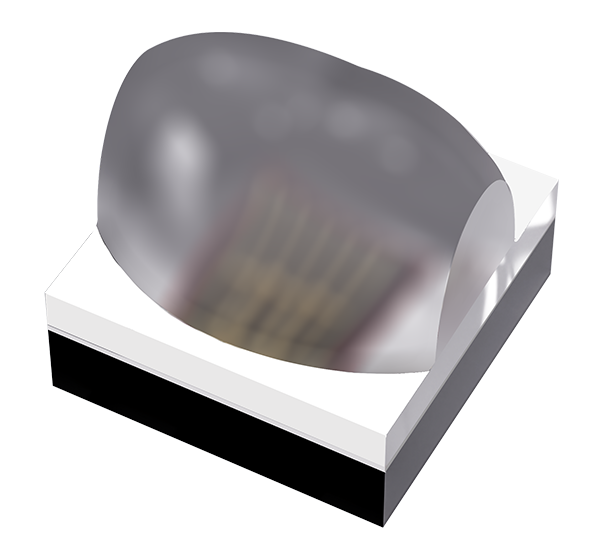

Power Asymmetric LED 1616 110° x 130°

사양

HF1616F85CQ01

제품 유형

IR LED

치수 (L x W x H)

1.6 x 1.6 X 1.37 mm

작동 온도

-40° ~ 105℃

빔 각도

110 x 130 °

밝기

전기

복사 강도 (IE)

420 mW/sr

순방향 전류 (IF)

Typ. 1000 mA

총 복사 플럭스 (ΦE)

1200 mW

전력

Typ. 3.6 W

파장 (λP)

940 nm

전압 (vF)

3.3 V

혜택

  • 낮은 열 저항, 2kV ESD 보호, 클래스 3B의 부식 방지 등급을 갖춘 AEC Q102 인증 솔루션입니다.

문서 및 도구

HF1616F85CQ01
