SIDE LED 5514

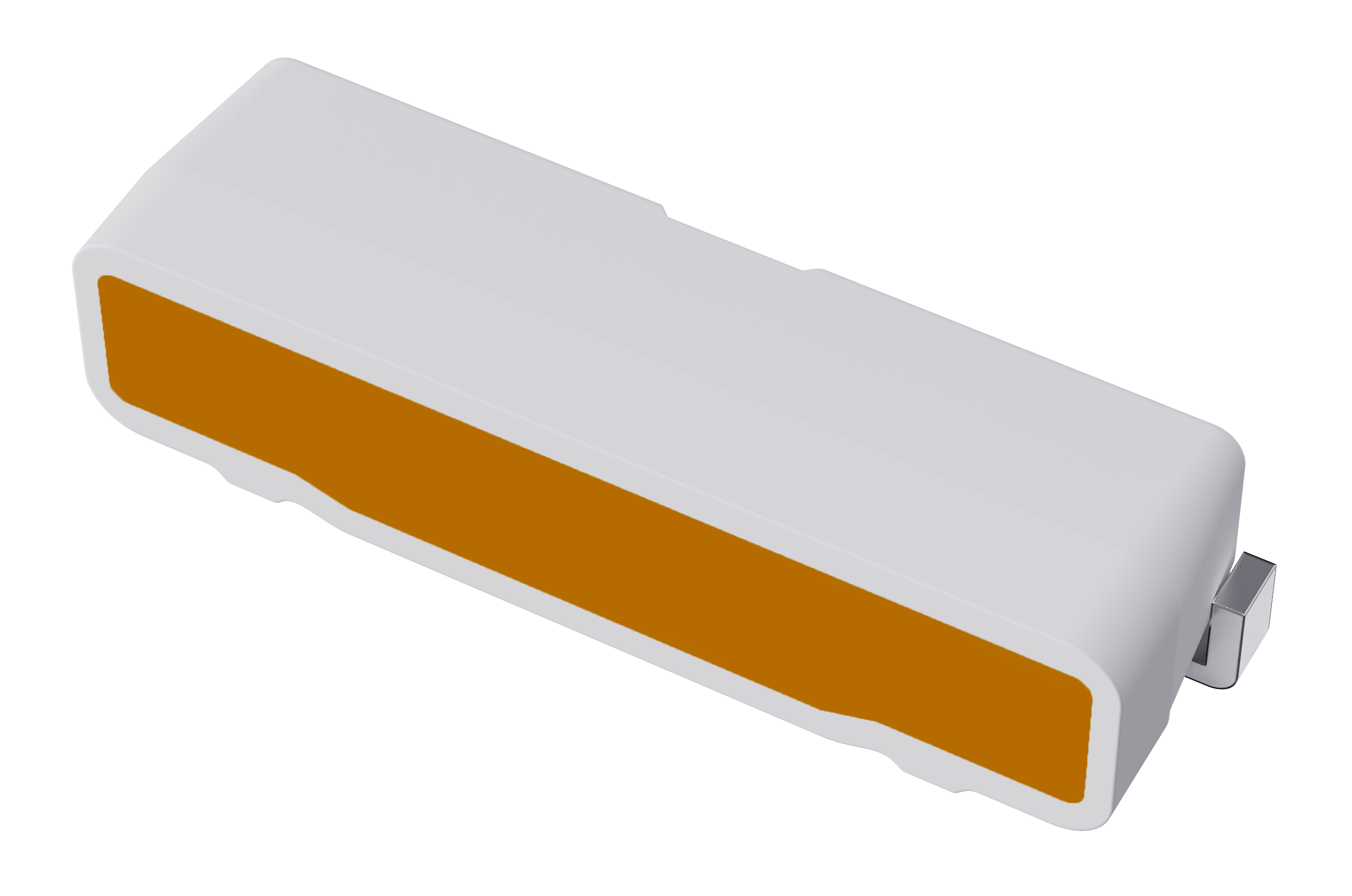

SIDE 5514-A A.png

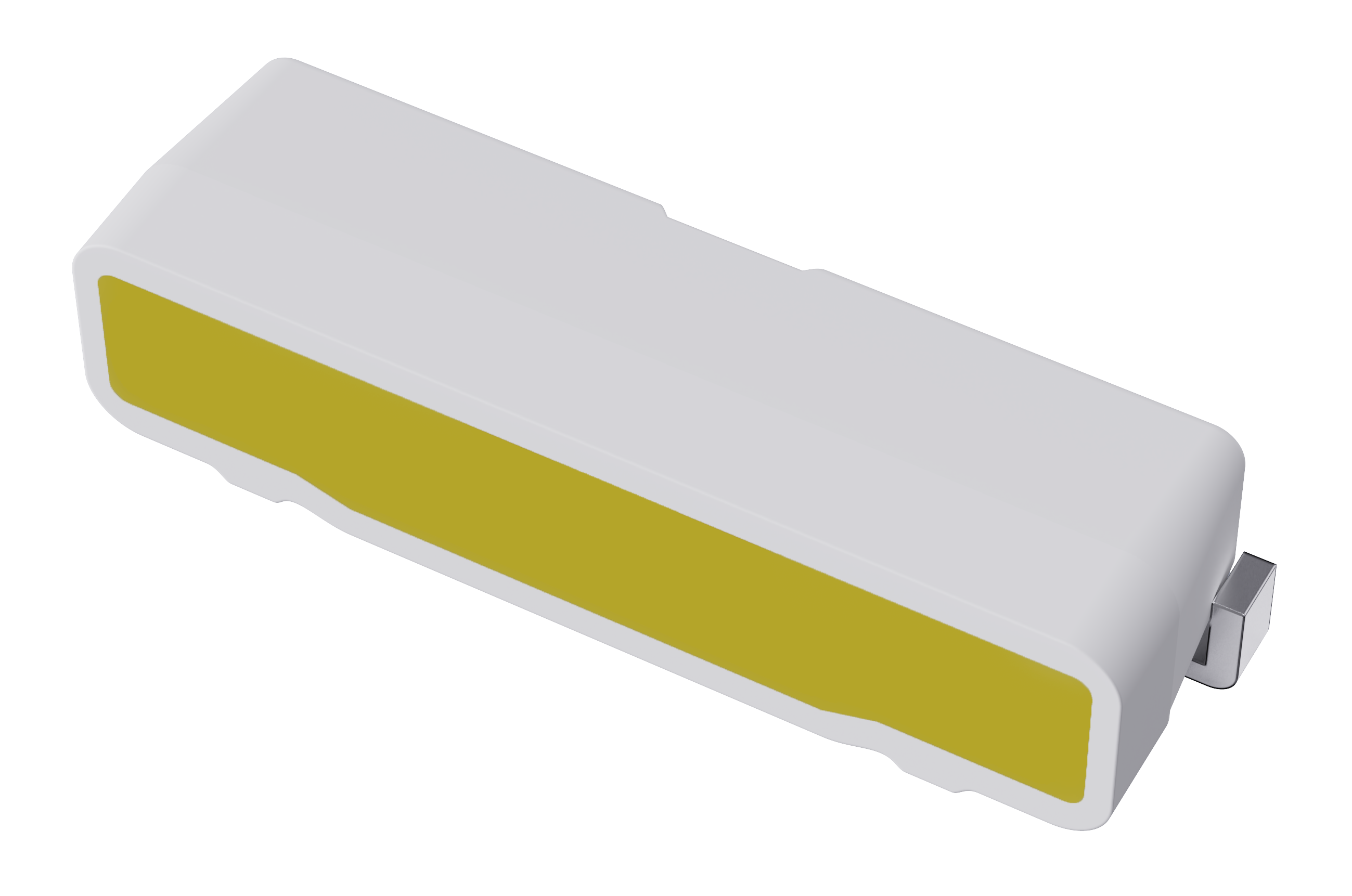

SIDE 5514-A W.png

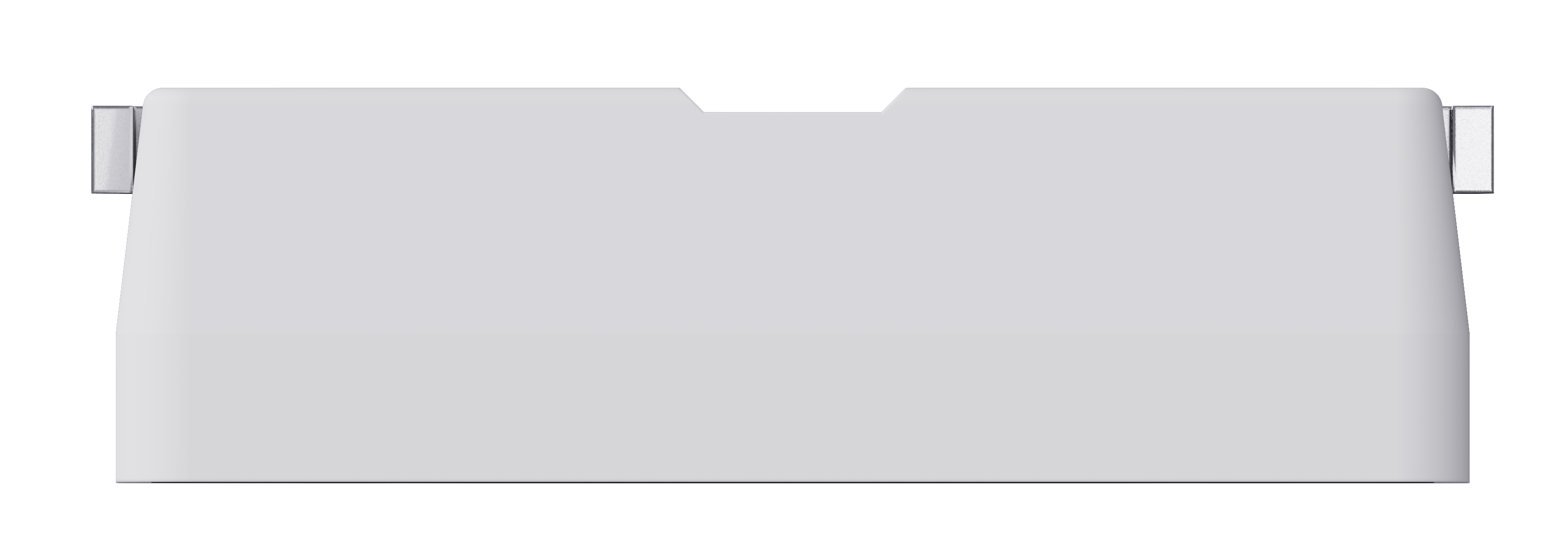

SIDE 5514-B.png
SIDE 5514-C.png

SIDE LED 5514

RoHS and REACH-compliant

MSL2a qualified according to JEDEC J-STD020

제품 성능

품번

이미터 색상

파장

전력

순방향

전류 (IF)

광속 (Φv)

발광

강도 (Iv)

PV55142V62T50601

Red

612-630 nm

0.336 W

140 mA

17 lm

5411 mcd

120 °

PV55142W17T50601

Amber

609-624 nm

1.02 W

160 mA

36 lm

11459 mcd

120 °

PV55142W40T50601

White

-

0.612 W

160 mA

24 lm

7639 mcd

120 °

제품 정보

혜택

  • Designed for automotive exterior applications, Side View LED 5514 features an ultra-thin, side-emitting design ideal for slim light guide plates and space-efficient lighting modules.

기능

RoHS and REACH-compliant

MSL2a qualified according to JEDEC J-STD020

문서 및 도구

PV55142V62T50601
PV55142W17T50601
PV55142W40T50601
