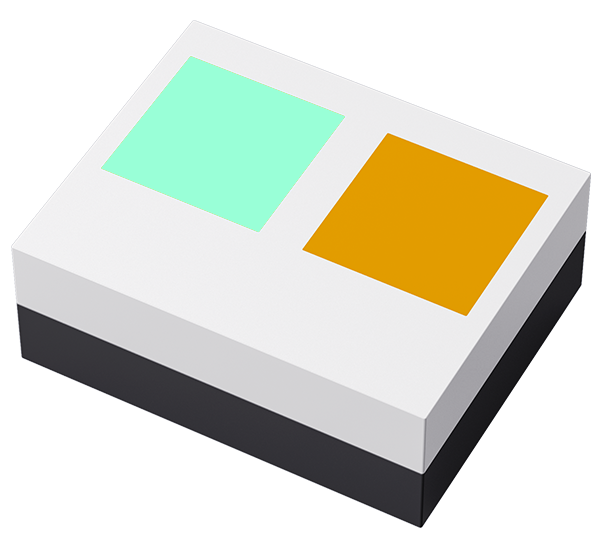

TOP LED 1519 Dual

Compact dual color package with chip scale optical window which is beneficial to the optical design, best fit for the integrated daytime running and turn signal light module.


More Downloads Request for Demo

Specifications

CV15192MWGMBZ602

Product Type

 LED

Dimension (L x W x H)

 1.5 x 1.9 X 0.85 mm

Operating Temperature

 -40° ~ 125℃

Beam Angle

 120 °

Emitting Color

Amber (609-624 nm)

Cyan (495-512 nm)

Brightness

Electrical

Luminous Flux (Φv)

Amber Typ. 52 lm

Electrical Power

 Typ. 0.5 W

Cyan Typ. 70 lm



Luminous Intensity(Iv)

Amber Typ. - mcd

Forward Current (IF)

Amber Typ. 200 mA

Cyan Typ. - mcd

Cyan Typ. 200 mA

Benefits

  • Compact dual color package with chip scale optical window which is beneficial to the optical design, best fit for the integrated daytime running and turn signal light module.

Features

Dual color package - Turquoise for ADS application and 1700K phosphor converted amber for turnning light

AECQ102 qualified

MSL2a qualified according to JEDEC J-STD020

RoHS and REACH-compliant

Applications

Exterior Lighting
