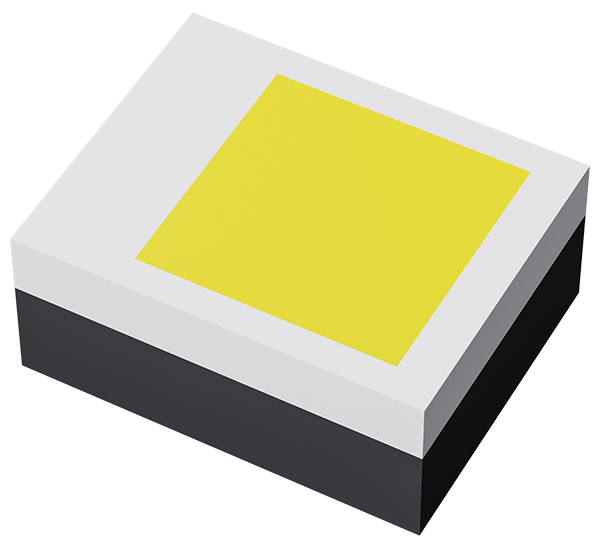

Power TOP LED 1519
Compact package with chip scale optical window for easily introducing and designing in automotive lighting application. Isolated thermal pad enables better thermal design.
Compact package with chip scale optical window for easily introducing and designing in automotive lighting application. Isolated thermal pad enables better thermal design.
Product Type |
LED |
Dimension (L x W x H) |
1.5 x 1.9 X 0.9 mm |
Operating Temperature |
-40° ~ 125℃ |
Beam Angle |
120 ° |
Emitting Color |
White |
||
Brightness |
Electrical |
||
Luminous Flux (Φv) |
White Typ. 200 lm |
Electrical Power |
Typ. 1.5 W |
| |||
Luminous Intensity(Iv) |
White Typ. - mcd |
Forward Current (IF) |
White Typ. 500 mA |
Compact package with chip scale optical window for easily introducing and designing in automotive lighting application.
Isolated thermal pad enables better thermal design.
High brightness chip scale package
AECQ102 qualified
MSL2 qualified according to JEDEC J-STD020
RoHS and REACH-complian
V51519W40WPZ1 Operation Manual.pdf
V51519W40WPZ1_Yellow_10M Rays_Zemax.sdf
V51519W40WPZ1_Yellow_10M Rays_Photopia.rir
V51519W40WPZ1_Yellow_10M Rays_IESTM25.tm25ray
V51519W40WPZ1_Yellow_10M Rays_SimuLux.ray
V51519W40WPZ1_Yellow_10M Rays_Speos.ray
V51519W40WPZ1_Yellow_10M Rays_TracePro.src
V51519W40WPZ1_Yellow_10M Rays_LightTools.ray
V51519W40WPZ1_Yellow_10M Rays_LUCID.ray
V51519W40WPZ1_Yellow_10M Rays_ASAP.dis
V51519W40WPZ1_Blue_10M Rays_Zemax.sdf
V51519W40WPZ1_Blue_10M Rays_Photopia.rir
V51519W40WPZ1_Blue_10M Rays_IESTM25.tm25ray
V51519W40WPZ1_Blue_10M Rays_SimuLux.ray
V51519W40WPZ1_Blue_10M Rays_Speos.ray
V51519W40WPZ1_Blue_10M Rays_TracePro.src
V51519W40WPZ1_Blue_10M Rays_LightTools.ray
V51519W40WPZ1_Blue_10M Rays_LUCID.ray
V51519W40WPZ1_Blue_10M Rays_ASAP.dis
V51519W40WPZ1_Blue spectrum.txt
V51519W40WPZ1_Yellow spectrum.txt
V51519W40WPZ1_Yellow spectrum.xls
V51519W40WPZ1_Blue spectrum.xls
V51519W40WPZ1_Yellow.spectrum
V51519W40WPZ1_Blue.spectrum
V51519W40WPZ1 spectrum.xls
