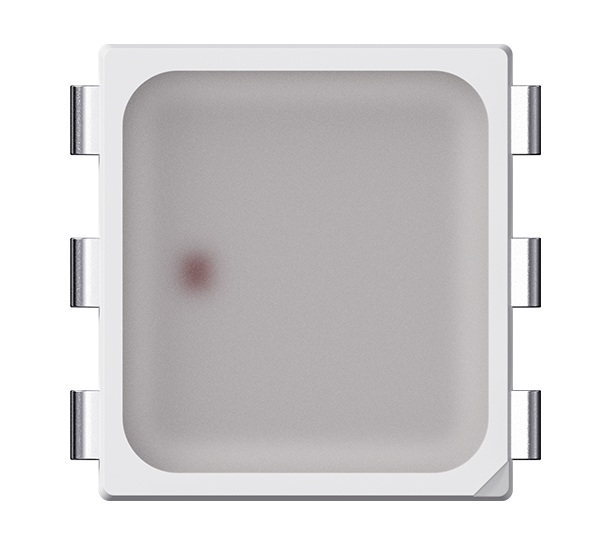

TOP LED 3433 RGB
0.2W PLCC6 RGB series, ideal for creating a variety of colors in ambient lighting.
0.2W PLCC6 RGB series, ideal for creating a variety of colors in ambient lighting.
Product Type |
LED |
Dimension (L x W x H) |
3.4 x 3.3 X 1.9 mm |
Operating Temperature |
-40° ~ 110℃ |
Beam Angle |
120 ° |
Emitting Color |
Red (612-630 nm) |
||
Green (565-575 nm) |
|||
Blue (450-480 nm) |
|||
Brightness |
Electrical |
||
Luminous Flux (Φv) |
Red Typ. - lm |
Electrical Power |
Typ. 0.2 W |
Green Typ. - lm |
|||
Blue Typ. - lm |
|||
| |||
Luminous Intensity(Iv) |
Red Typ. 800 mcd |
Forward Current (IF) |
Red Typ. 20 mA |
Green Typ. 2300 mcd |
Green Typ. 20 mA |
||
Blue Typ. 500 mcd |
Blue Typ. 20 mA |
0.2W PLCC6 RGB series, ideal for creating a variety of colors in ambient lighting.
0.2W PLCC6 3433, forward current: ≦ 50mA
Binning by RGB spec, long wavelength blue
AECQ102 qualified
MSL level 2a
RoHS2.0 and REACH-compliant
6SC3433VGB00MSZ5-Blue_10M Rays_ASAP.dis
6SC3433VGB00MSZ5-Blue_10M Rays_IESTM25.tm25ray
6SC3433VGB00MSZ5-Blue_10M Rays_LUCID.ray
6SC3433VGB00MSZ5-Blue_10M Rays_Photopia.rir
6SC3433VGB00MSZ5-Blue_10M Rays_SimuLux.ray
6SC3433VGB00MSZ5-Blue_10M Rays_Speos.ray
6SC3433VGB00MSZ5-Blue_10M Rays_TracePro.src
6SC3433VGB00MSZ5-Blue_10M Rays_Zemax.sdf
6SC3433VGB00MSZ5-Green_10M Rays_ASAP.dis
6SC3433VGB00MSZ5-Green_10M Rays_IESTM25.tm25ray
6SC3433VGB00MSZ5-Green_10M Rays_LightTools.ray
6SC3433VGB00MSZ5-Green_10M Rays_LUCID.ray
6SC3433VGB00MSZ5-Green_10M Rays_Photopia.rir
6SC3433VGB00MSZ5-Green_10M Rays_SimuLux.ray
6SC3433VGB00MSZ5-Green_10M Rays_Speos.ray
6SC3433VGB00MSZ5-Green_10M Rays_TracePro.src
6SC3433VGB00MSZ5-Green_10M Rays_Zemax.sdf
6SC3433VGB00MSZ5-Red_10M Rays_ASAP.dis
6SC3433VGB00MSZ5-Red_10M Rays_IESTM25.tm25ray
6SC3433VGB00MSZ5-Red_10M Rays_LightTools.ray
6SC3433VGB00MSZ5-Red_10M Rays_LUCID.ray
6SC3433VGB00MSZ5-Red_10M Rays_Photopia.rir
6SC3433VGB00MSZ5-Red_10M Rays_SimuLux.ray
6SC3433VGB00MSZ5-Red_10M Rays_Speos.ray
6SC3433VGB00MSZ5-Red_10M Rays_TracePro.src
6SC3433VGB00MSZ5-Red_10M Rays_Zemax.sdf
6SC3433VGB00MSZ5 Operation Manual
