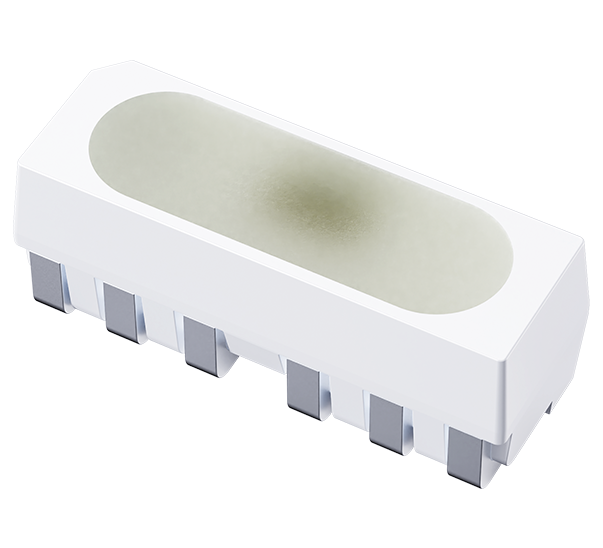

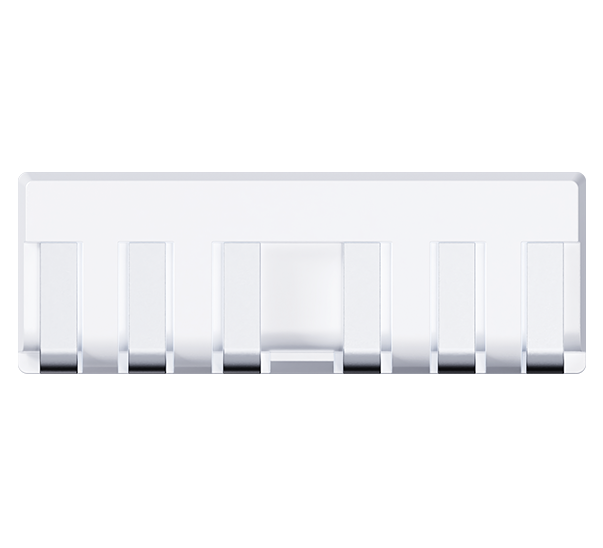

SIDE ICLED 4516

Side-view RGB ICLED, ideal for ambient light applications with an optical design that easily couples light into light guides and meets slim requirements.

More Downloads Request for Demo

Specifications

CB4516VGB0MFN1

Product Type

 iCLed

Dimension (L x W x H)

 4.5 x 1.6 X 1.7 mm

Operating Temperature

 -40° ~ 85℃

Beam Angle

 120 °

Emitting Color

Red (612-630 nm)

Green (565-575 nm)

Blue (450-480 nm)

White

Brightness

Electrical

Luminous Flux (Φv)

Red Typ. - lm

Electrical Power

 Typ. 0.4 W

Green Typ. - lm

Blue Typ. - lm

White Typ. - lm



Luminous Intensity(Iv)

Red Typ. 750 mcd

Forward Current (IF)

Red Typ. 20 mA

Green Typ. 1450 mcd

Green Typ. 20 mA

Blue Typ. 240 mcd

Blue Typ. 20 mA

White Typ. 2050 mcd

White Typ. 20 mA

Benefits

  • Side-view RGB ICLED, ideal for ambient light applications with an optical design that easily couples light into light guides and meets slim requirements.

Features

0.1W side view RGB ICLED, 20mA per channel, 8 bits PWM, 5 bits brightness dimming

Dual line signal transmission, Data / Clock

Binning by RGB spec

Supports sleep /wake-up mode. In sleep mode, the LED's current is lower than 5uA

AECQ100/102 qualified

MSL level 2a

RoHS Compliant

Applications

Gaming
