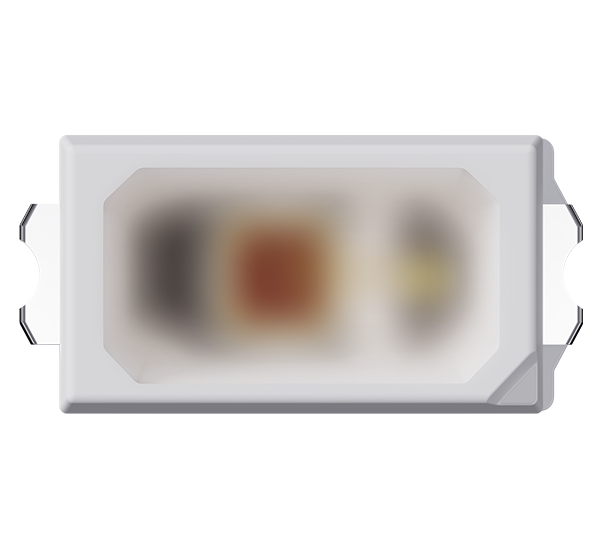

TOP LED 1608

Conventional PLCC2 product series, ideal for exterior applications.

Specifications

V61608A00MFN1

Product Type

 LED

Dimension (L x W x H)

 1.6 x 0.8 X 0.55 mm

Operating Temperature

 -40° ~ 105℃

Beam Angle

 120 °

Emitting Color

Orange (600-609 nm)

Brightness

Electrical

Luminous Flux (Φv)

Orange Typ. - lm

Electrical Power

 Typ. 0.1 W



Luminous Intensity(Iv)

Orange Typ. 480 mcd

Forward Current (IF)

Orange Typ. 20 mA

Benefits

  • Conventional PLCC2 product series, ideal for exterior applications.

Features

Forward current: ≦ 30mA

Typical view angle 50% Iv: 120°

RoHS2.0 and REACH-compliant

Lens color: :water transparent

MSL Level 2a

ESD level 2 kV(HBM)

Reliability Test: AEC Q-102 qualified
