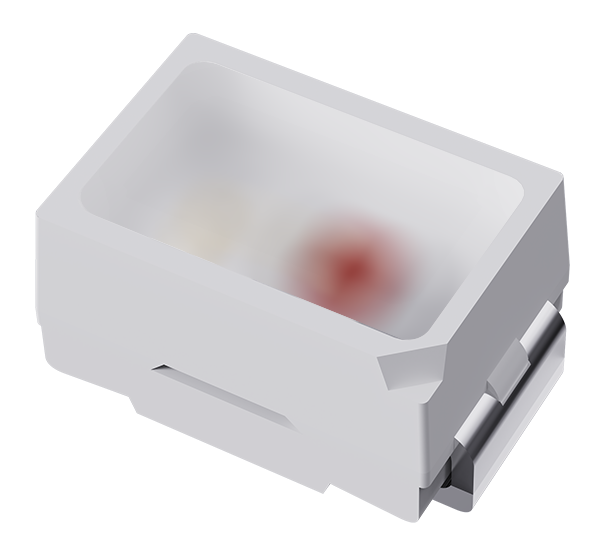

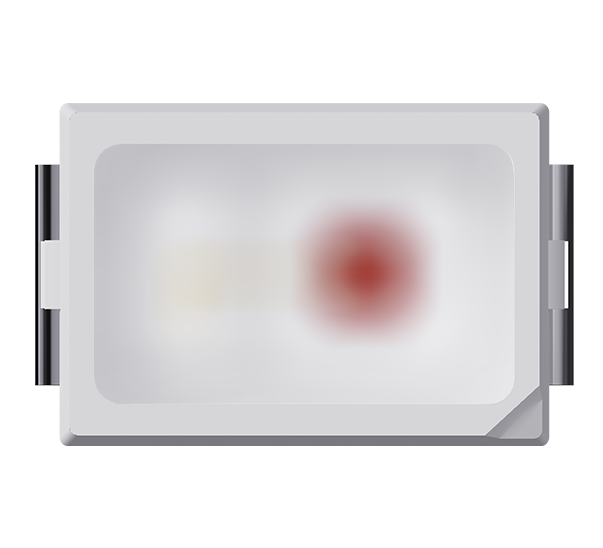

TOP LED 2214

Conventional PLCC2 product series, featuring a range of colors and adaptable driving conditions.

More Downloads Request for Demo

Specifications

6SC2214V31B0CM01

Product Type

 LED

Dimension (L x W x H)

 2.2 x 1.4 X 1.3 mm

Operating Temperature

 ° ~ 105℃

Beam Angle

 120 °

Emitting Color

Super Red (627-639 nm)

Brightness

Electrical

Luminous Flux (Φv)

Super Red Typ. - lm

Electrical Power

 Typ. 0.1 W



Luminous Intensity(Iv)

Super Red Typ. 140 mcd

Forward Current (IF)

Super Red Typ. 20 mA

Benefits

  • Conventional PLCC2 product series, featuring a range of colors and adaptable driving conditions.

Features

Forward current: ≦ 30mA

Typical view angle 50% Iv: 120°

RoHS2.0 and REACH-compliant

Lens color:  water transparent

MSL Level 2a

ESD level 2 kV(HBM)

Reliability Test: AEC Q-102qualified

Applications

Interior Lighting

Gaming
