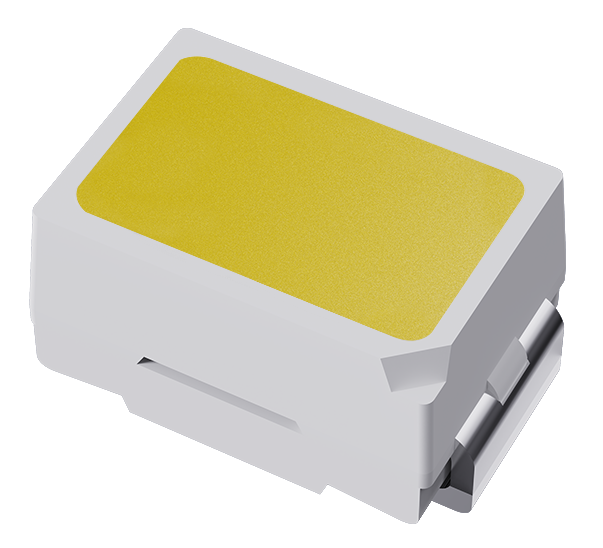

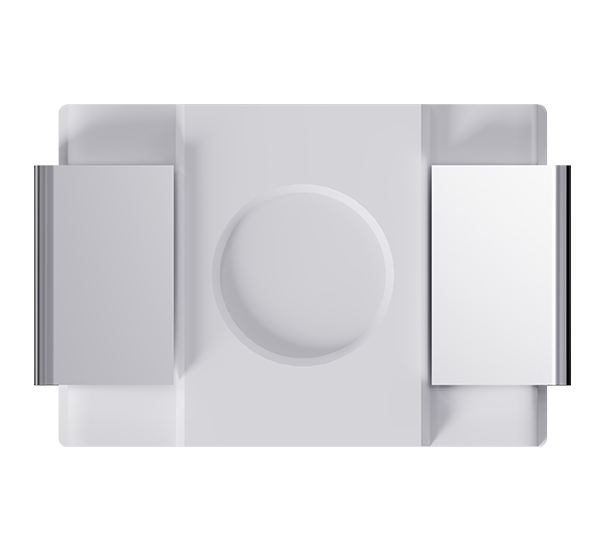

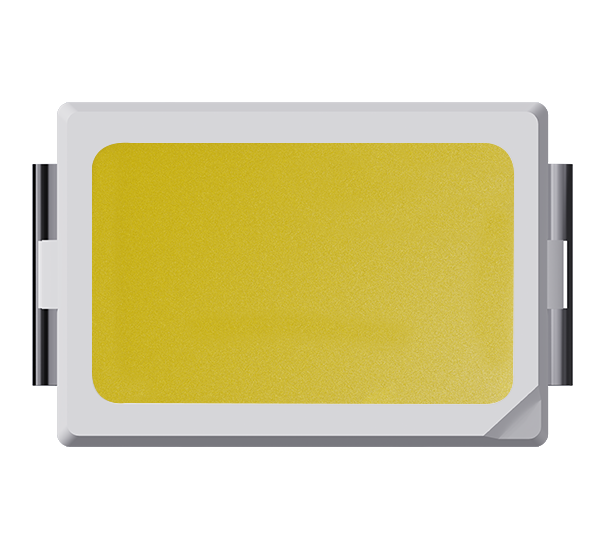

TOP LED 2214

Conventional PLCC2 product series, featuring a range of colors and adaptable driving conditions.

More Downloads Request for Demo

Specifications

6SC2214W52E0WMZ7

Product Type

 LEDs

Dimension (L x W x H)

 2.2 x 1.4 X 1.3 mm

Operating Temperature

 -40° ~ ℃

Beam Angle

 120 °

Emitting Color

White

Brightness

Electrical

Luminous Flux (Φv)

White Typ. - lm

Electrical Power

 Typ. 0.1 W



Luminous Intensity(Iv)

White Typ. 2050 mcd

Forward Current (IF)

White Typ. 20 mA

Benefits

  • Conventional PLCC2 product series, featuring a range of colors and adaptable driving conditions.

Features

Forward current: ≦ 30mA

Typical view angle 50% Iv: 120°

RoHS2.0 and REACH-compliant

Lens color: yellowish

MSL Level 2a

ESD level 6kV(HBM)

Reliability Test: AEC Q-102 qualified

Applications

Interior Lighting

Gaming

Related Products

TOP LED 1519

TOP LED 1608

TOP LED 3433 RGB

Power TOP LED 1519
