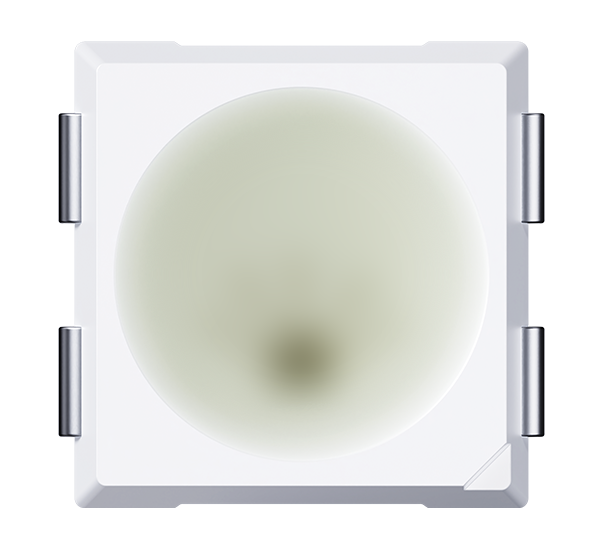

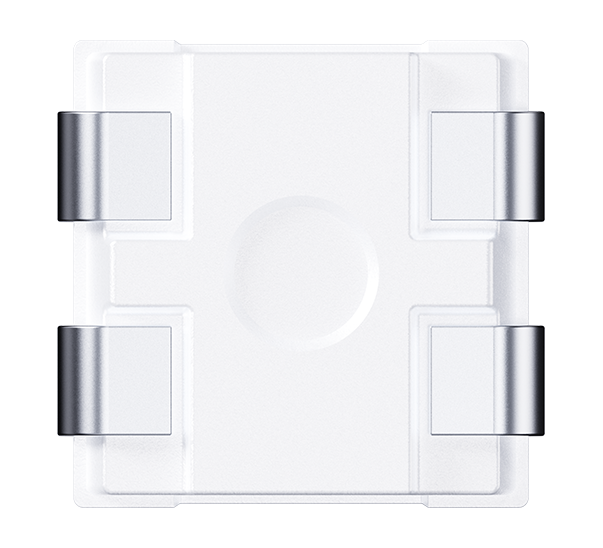

TOP iCLed 3535

TOP iCLed 3535

Streamlining electrical circuit design for versatile color creation. With a dual-line signal ensuring rapid, long-distance transmission, our smart current control and PWM adjustment make ambient light color dimming effortless.

Product Performance

Part Number

Emitter Color

Wavelength

Electrical Power

Forward

Current (IF)

Luminous

Flux (Φv)

Luminous

Intensity(Iv)

ISC3535VGBC1MBA3

Red

Green

Blue

White

612-630 nm

565-575 nm

450-480 nm

-

0.25 W

- mA

- mA

- mA

- mA

- lm

- lm

- lm

- lm

- mcd

- mcd

- mcd

- mcd

120 °

ISC3535VGBC1MBA1

Red

Green

Blue

White

612-630 nm

565-575 nm

450-480 nm

-

0.25 W

5 mA

5 mA

5 mA

5 mA

- lm

- lm

- lm

- lm

170 mcd

530 mcd

120 mcd

810 mcd

120 °

ISC3535VGBC1MBA2

Red

Green

Blue

White

612-630 nm

565-575 nm

450-480 nm

-

0.25 W

12 mA

12 mA

12 mA

12 mA

- lm

- lm

- lm

- lm

380 mcd

950 mcd

210 mcd

1500 mcd

120 °

ISC3535VGBC1MCK3

Red

Green

Blue

White

612-630 nm

565-575 nm

450-480 nm

-

0.25 W

20 mA

20 mA

20 mA

20 mA

- lm

- lm

- lm

- lm

550 mcd

1700 mcd

300 mcd

2500 mcd

120 °

VC3535VGBMFN1

Red

Green

Blue

612-630 nm

565-575 nm

450-480 nm

0.25 W

20 mA

20 mA

20 mA

- lm

- lm

- lm

460 mcd

1900 mcd

330 mcd

120 °

6SC3535VGBC1MCK3

Red

Green

Blue

White

612-630 nm

565-575 nm

450-480 nm

-

0.3 W

20 mA

20 mA

20 mA

20 mA

- lm

- lm

- lm

- lm

900 mcd

1700 mcd

400 mcd

2900 mcd

120 °

Product Information

Benefits

  • The dual-line signal ensures fast and long-distance transmission performance, enabling simple control of smart current and PWM adjustment for easy color dimming in ambient lighting.

Features

iCLed, 20mA per channel

8 bits PWM for color modulation, 5 bits brightness dimming

Dual line transmission, Data/Clock

AECQ100/AECQ102 qualified

MSL level 3

RoHS2.0 and REACH-compliant
