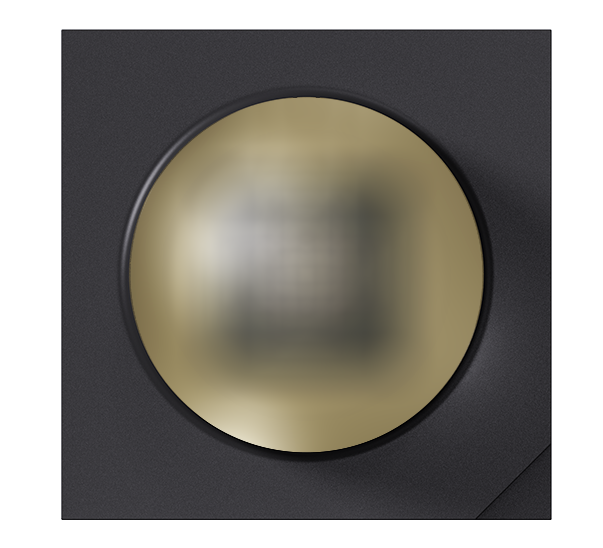

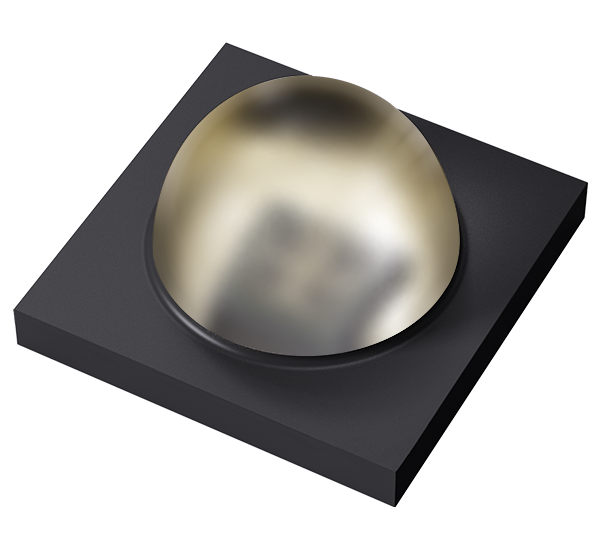

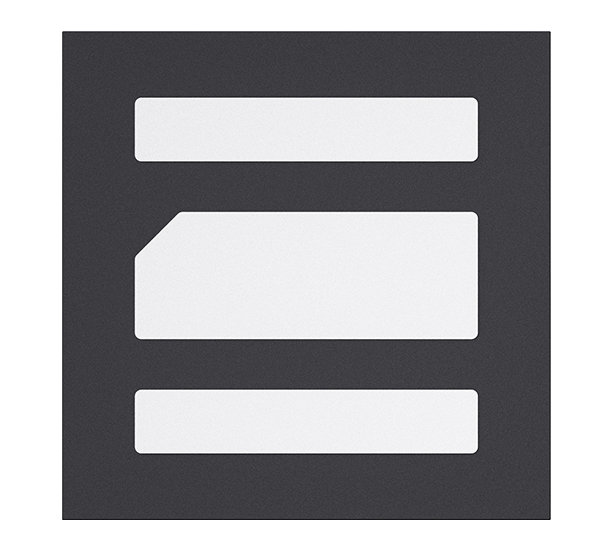

Power Dome LED 3838 80°/90°

Perfectly tailored for Driver Monitor Systems and security applications, ensuring reliable performance in critical scenarios.

More Downloads Request for Demo

Specifications

SD3838F94CQ01

Product Type

IR LED

Dimension (L x W x H)

3.85 x 3.85 X 2.29 mm

Operating Temperature

-40° ~ 105℃

Beam Angle

90 °

Brightness

Electrical

Radiant Intensity(IE)

430 mW/sr

Forward Current (IF)

Typ. 1000 mA

Total Radiant Flux (ΦE)

800 mW

Electrical Power

Typ. 2 W

Peak Wavelength(λP)

940 nm

Forward Voltage(vF)

1.6 V

Benefits

  • An AEC Q102 Qualified solution, featuring low thermal resistance, 2kV ESD protection, and a corrosion robustness rating of Class 3B.

Features

IR light source with high efficiency

Peak wavelength 940 nm

Single junction emitter

RoHS 2.0 and REACH compliant

MSL 2 qualified according to J STD 020

Applications

Driver Monitor System

Security
