The Smart Cabin Trend in 2026 and What It Demands from Driver Monitoring Systems

As vehicles become intelligent, in-cabin displays have evolved from simple information panels into the central hub of human-vehicle interaction. Among the most defining design trends of 2026 is the pillar-to-pillar screen, which is a seamless, multi-display configuration that extends the full width of the dashboard, integrating the digital dashboard, center console, and front passenger entertainment system into a single immersive surface.

This design, more and more popular in premium electric vehicles, creates a cockpit-like environment that blurs the boundary between mobility and a connected workspace. But this new design brings an engineering challenge: where do you place the driver monitoring system (DMS) camera when there is no room available in the center position on the dashboard?

Why Driver Monitoring Systems Are Now Mandatory

Before addressing the optical challenge, it is important to understand why driver monitoring systems have moved from optional features to regulatory requirements.

EU General Safety Regulation (EU 2019/2144)

The European Union's General Safety Regulation mandates that Driver Drowsiness and Attention Warning (DDAW) systems be standard on all new vehicles sold in the EU as of 2024. Furthermore, Advanced Driver Distraction Warning (ADDW) functionality is going to be a standard across many vehicles. These systems are required to activate automatically upon vehicle startup, ensuring continuous driver state awareness.

UNECE UN R157 — Automated Lane Keeping Systems (ALKS)

For Level 3 autonomous driving, UN R157 explicitly mandates Driver Availability Recognition capabilities. The vehicle must continuously verify that the driver is alert and capable of resuming control when the system requests a handover. A reliable, high-performance driver monitoring system is not optional, instead, it is a legal prerequisite for Level 3 deployment.

 Euro NCAP 2026 Updated Safety Ratings

The 2026 Euro NCAP new car assessment program introduces stricter requirements for both Driver Monitoring Systems (DMS) and Occupant Monitoring Systems (OMS). To achieve high safety star ratings, vehicles must demonstrate continuous driver tracking, attentiveness monitoring, alcohol and drug impairment recognition, seatbelt detection, and incapacitated driver assistance for safe stopping.

A fully functional driver monitoring system powered by in-cabin cameras combined with AI algorithms, continuously monitors gaze direction, eye movement, head pose, and attention level. When fatigue or distraction is detected, the system triggers visual, auditory, or haptic alerts. The technology is also expanding into broader in-cabin sensing applications, including passenger posture recognition, child presence detection, and vital sign monitoring.

The A-Pillar Problem: A Smart Cabin Design Constraint

As pillar-to-pillar displays become the dominant dashboard layout, automotive designers and OEM engineers face an installing hardware placement challenge. Installing a DMS camera directly behind the steering wheel or at the center of the dashboard, which is usually the traditional preferred location, is no longer available without interrupting the seamless screen aesthetic.

The A-pillar has emerged as the alternative installation position for driver monitoring systems. It offers an excellent sightline to the driver's face and does not interfere with the display surface. However, this solution comes with two optical and physical constraints that must be overcome for the DMS to function reliably.

Two Critical Optical Challenges of A-Pillar DMS Installation

1. Limited Installation Space

The A-pillar's internal structure is compact by design, accommodating structural reinforcement, airbag systems, and wiring harnesses. The physical space available for optical components including the infrared LED illuminators that power the DMS camera is limited. Components must be miniaturized without compromising light output or reliability.

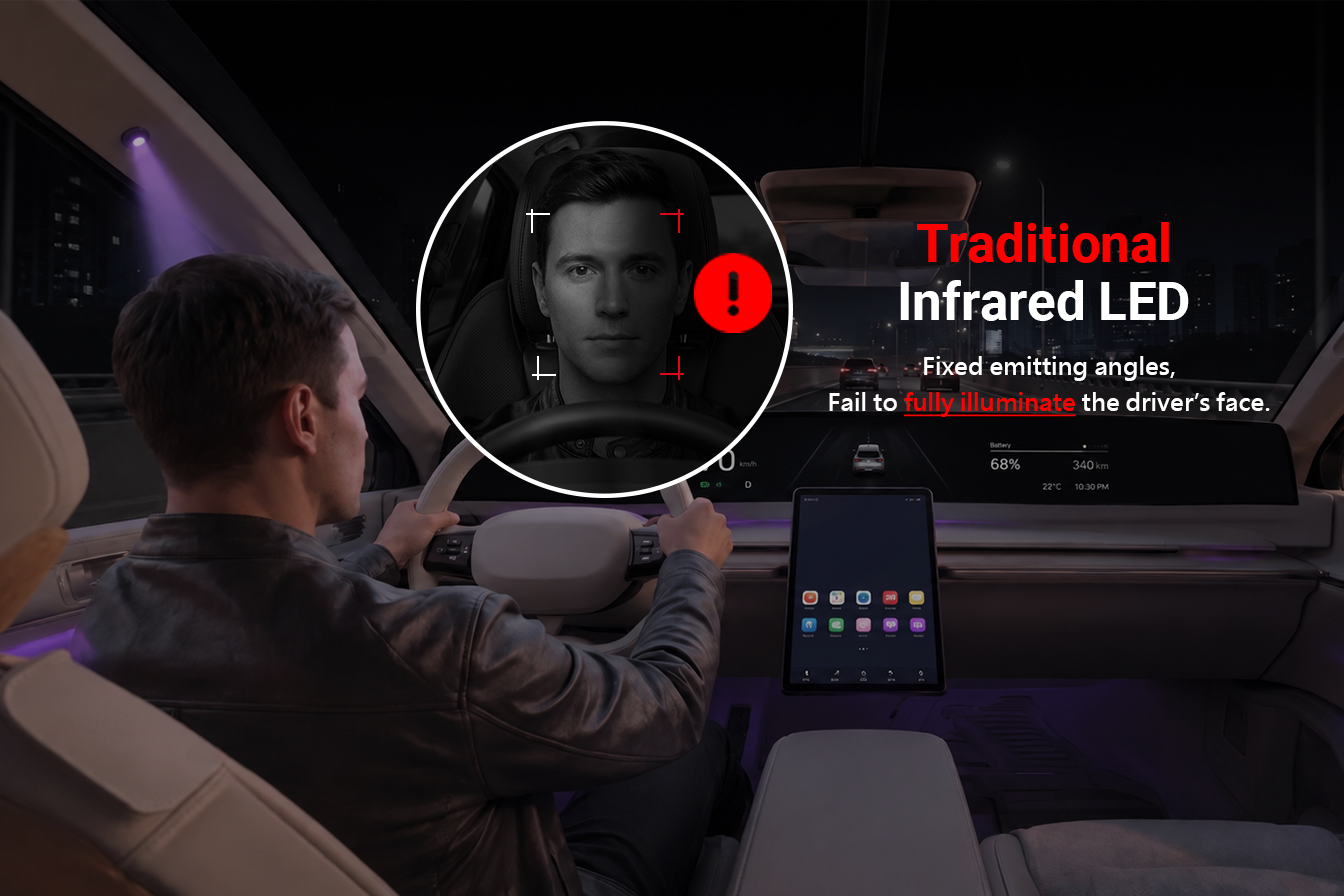

2. Asymmetric Infrared Illumination and Coverage Gaps

This is the more critical optical challenge. The A-pillar is positioned to the side and slightly in front of the driver, not directly in front. A conventional infrared LED emits light along a fixed, centered optical axis. When mounted in the A-pillar, this standard emission pattern results in infrared light illuminating only the driver's side profile rather than illuminating the face evenly.

The consequences are significant:

• Uneven infrared illumination — hot spots and shadow zones degrade image quality under varying ambient light conditions.

• Reduced DMS precision — fatigue detection, gaze tracking, and distraction recognition all depend on consistent, full-face illumination. Uneven lighting directly undermines system accuracy.

Standard Infrared LEDs simply were not designed for off-center, angled deployment scenarios like A-pillar mounting.

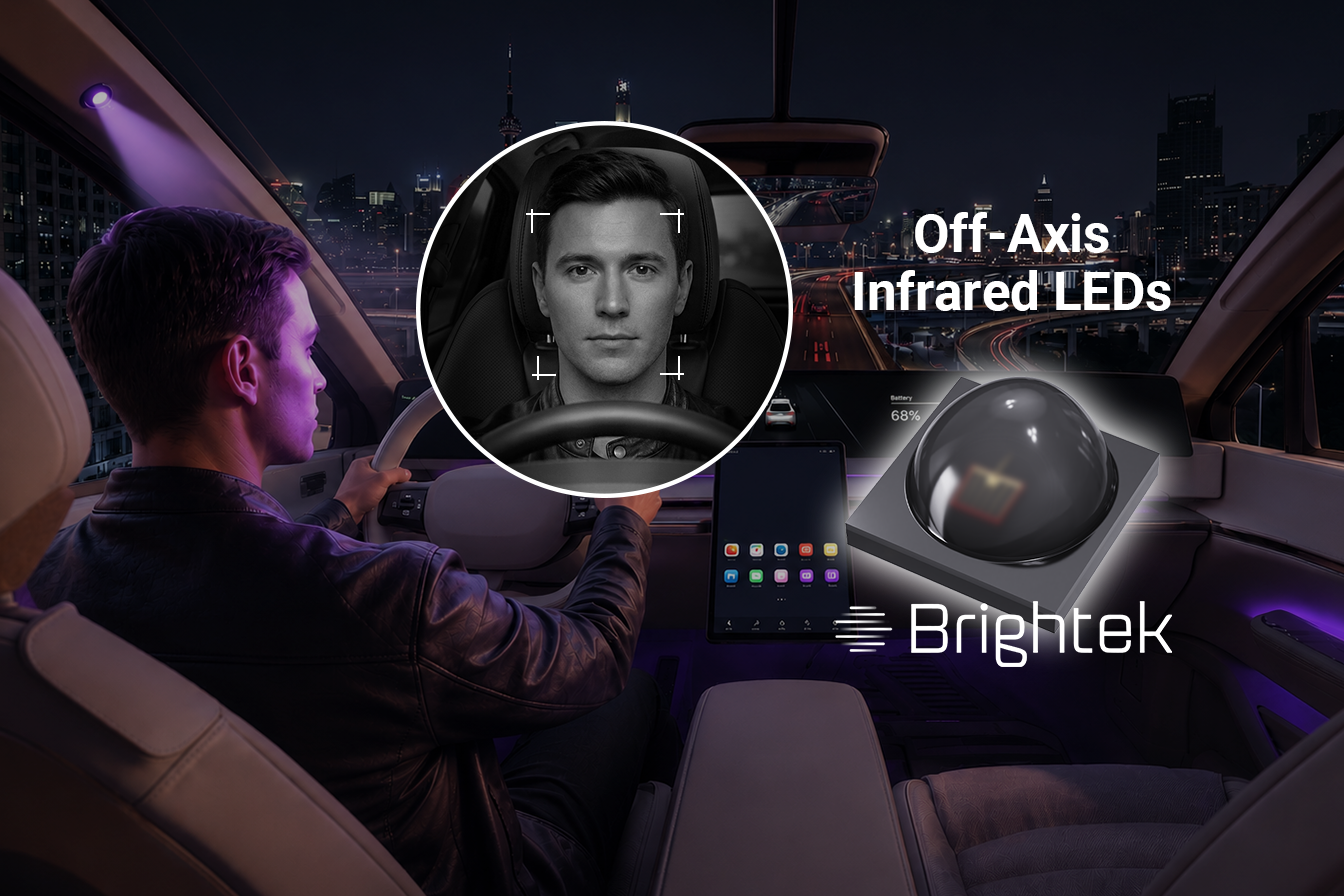

Brightek's Off-Axis Infrared LED: Purpose-Built for A-Pillar Driver Monitoring System (DMS)

ABrightek has developed the industry's first off-axis infrared LED, specifically engineered to resolve the optical challenges inherent in A-pillar driver monitoring system installations.

The Core Innovation: Native Off-Axis Optical Design

The key differentiator of Brightek's off-axis infrared LED is that the angular deviation is built directly into the chip packaging stage, which is not achieved through secondary optical processing or external lens modification. The light path tilt angle is preset during manufacturing, allowing the infrared LED to emit light precisely toward the driver's face from the A-pillar's angled position.

This native design approach offers a fundamental advantage over conventional solutions:

Traditional Infrared LED with angle modification:

Secondary optical processing required → additional cost → increased component volume → installation complexity

Brightek Off-Axis Infrared LED:

Ready to deploy as manufactured → no secondary processing → compact form factor → direct A-pillar integration

OEM engineers and Tier 1 suppliers can integrate Brightek's off-axis infrared LED directly into A-pillar DMS modules without redesigning the optical path or adding external bracket, achieving precise and uniform infrared coverage of the driver's face.

Key Advantages of Brightek Off-Axis Infrared LED

Advantage 1: Off-Axis Optical Design Increases DMS Recognition Accuracy

By presetting the light path tilt at the packaging stage, Brightek's off-axis infrared LED ensures that infrared illumination reaches the driver's face directly from the A-pillar position. This design minimizes reflections and optical interference caused by the complex internal structures of the vehicle cabin, ensuring sharp, high-contrast imaging for DMS.

The result is measurably improved accuracy in:

• Gaze tracking and eye movement detection

• Head pose estimation

• Fatigue and drowsiness classification

• Distraction event recognition

Advantage 2: Automotive-Grade Certification

Safety is non-negotiable in automotive applications. Brightek's off-axis infrared LED has achieved the following critical certifications:

• IEC 62471 Eye Safety Certification : Confirms that the infrared light output poses no harm to human eyes, protecting drivers from long-term exposure risks during continuous DMS operation.

• AEC-Q102 Automotive Reliability Qualification : Compliant with the automotive-grade component reliability standard, ensuring performance consistency across the full range of in-vehicle temperature, vibration, and humidity conditions.

These certifications are prerequisites for deployment in safety-critical automotive systems and demonstrate Brightek's commitment to delivering components that meet the most demanding global automotive quality standards.

System-Level Impact: Enabling Intelligent Driving Safety in 2026 and Beyond

The pillar-to-pillar smart cabin design trend and mandatory DMS regulations in the EU and global markets makes the optical performance of in-cabin infrared illumination a critical enabler of vehicle safety.

The benefits Brightek's off-axis infrared LED provides for different parties are:

Benefits for OEM Automakers and Tier 1 Suppliers

• Simplified integration: Eliminates the need for secondary optical processing, reducing materials complexity and assembly time.

• Cost efficiency: Fewer components and no custom optical modification needed.

• Improved DMS performance metrics: Uniform and complete infrared face illumination enables higher DMS system accuracy.

• Design flexibility: The compact, pre-angled form factor is compatible with the limited space of A-pillar installations in modern smart cabin architectures.

Benefits for Drivers and Passengers

• Comprehensive driving safety protection: A more accurate DMS means earlier and more reliable detection of fatigue, distraction, and impairment, enabling timely intervention before a safety-critical event occurs.

• Automotive-grade reliability: Components built and qualified with AEC-Q102 standards deliver consistent performance across the vehicle's operational lifetime.

• Absolute eye safety: IEC 62471 certification ensures that continuous infrared illumination in the cabin presents no risk to driver or passenger vision.

Conclusion: The Right Infrared LED Makes the Difference

As automotive interiors evolve toward full pillar-to-pillar display configurations, the precise placement and optical performance of infrared LEDs for driver monitoring systems becomes a decisive factor in both regulatory compliance and real-world safety outcomes.

Brightek’s' off-axis infrared LED is designed to solve the specific challenges of A-pillar DMS deployment delivering accurate, uniform infrared face illumination without secondary optical processing in a compact, automotive-certified package.

Visit the product page to learn more about Brightek's off-axis infrared LED solutions for driver monitoring systems.

https://www.brightek.com/products/invisible/irled/id-4862.html
