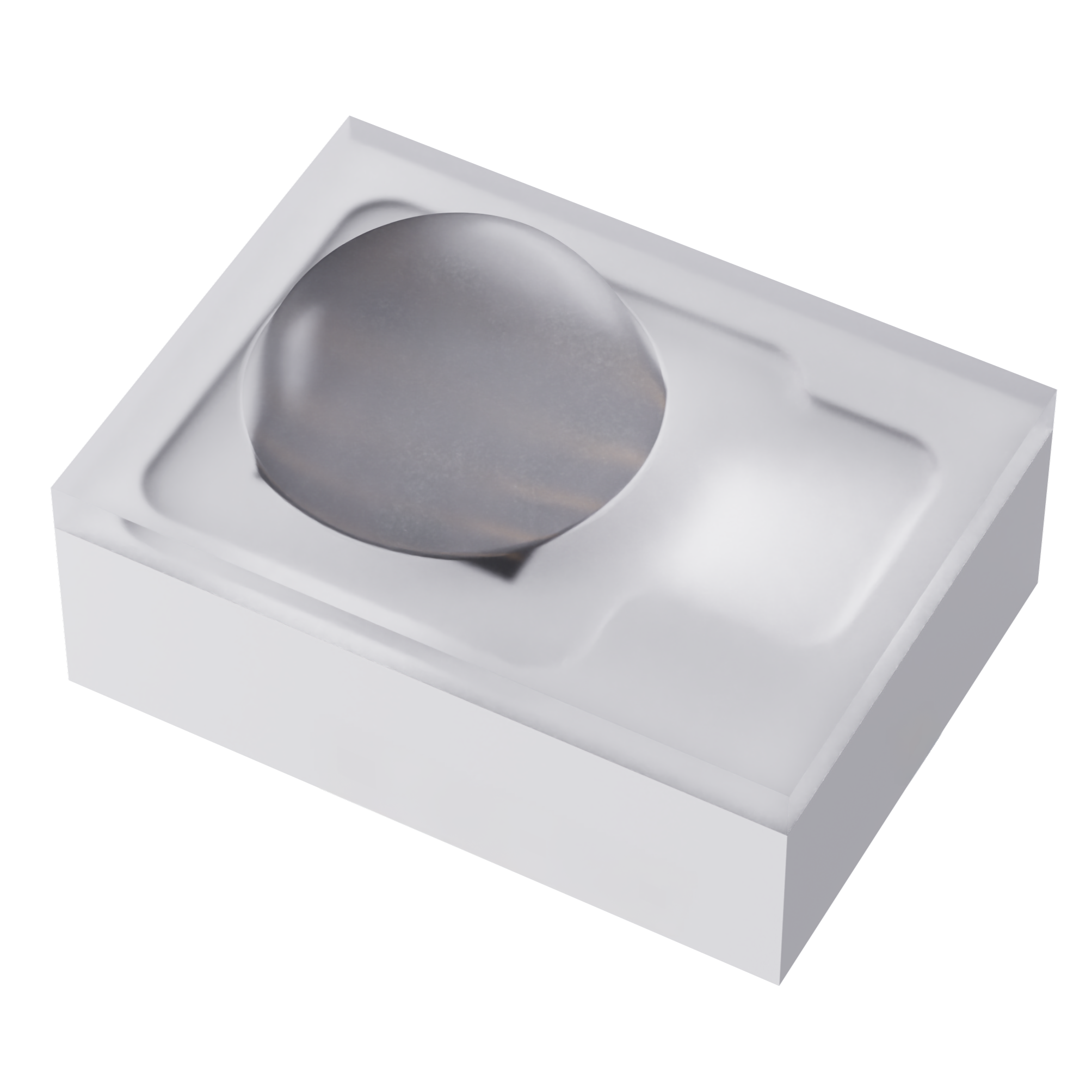

Power Dome LED 2720 80°

Compliant with the latest notebook camera specifications, the Power Dome IR LED 2720 delivers enhanced illumination uniformity to improve recognition accuracy for next-generation NB camera applications.

More Downloads Request for Demo

Specifications

EC27201F94CE0403

Product Type

IR LED

Dimension (L x W x H)

2.75 x 2 X 2 mm

Operating Temperature

-40° ~ 125℃

Beam Angle

80 °

Brightness

Electrical

Radiant Intensity(IE)

400 mW/sr

Forward Current (IF)

Typ. 1000 mA

Total Radiant Flux (ΦE)

700 mW

Electrical Power

Typ. 3.6 W

Peak Wavelength(λP)

940 nm

Forward Voltage(vF)

2.6 V

Benefits

  • Compliant with the latest notebook camera specifications, the Power Dome IR LED 2720 delivers enhanced illumination uniformity to improve recognition accuracy for next-generation NB camera applications.

Features

IR light source with high efficiency

Peak wavelength 940 nm

Dual junction emitter

RoHS 2.0 and REACH compliant

MSL 1 qualified according to J STD 020

Applications

Gaming

Related Products

Power Asymmetric LED 1616 110° x 130°

Power Off-Axis LED 3838 135°x35°

Power Flat LED 1616 130°

Power Asymmetric LED 3838 150°x90°
