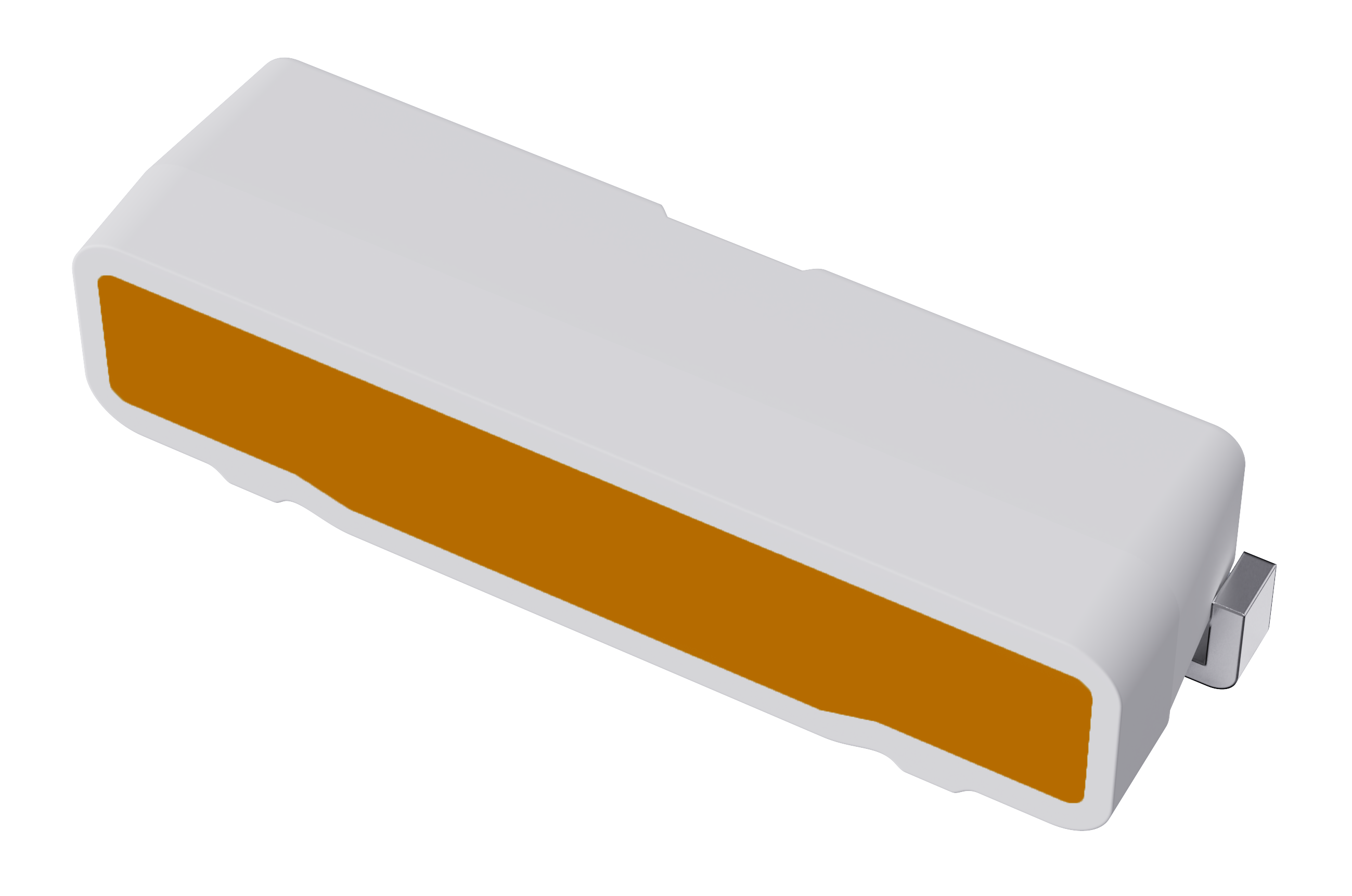

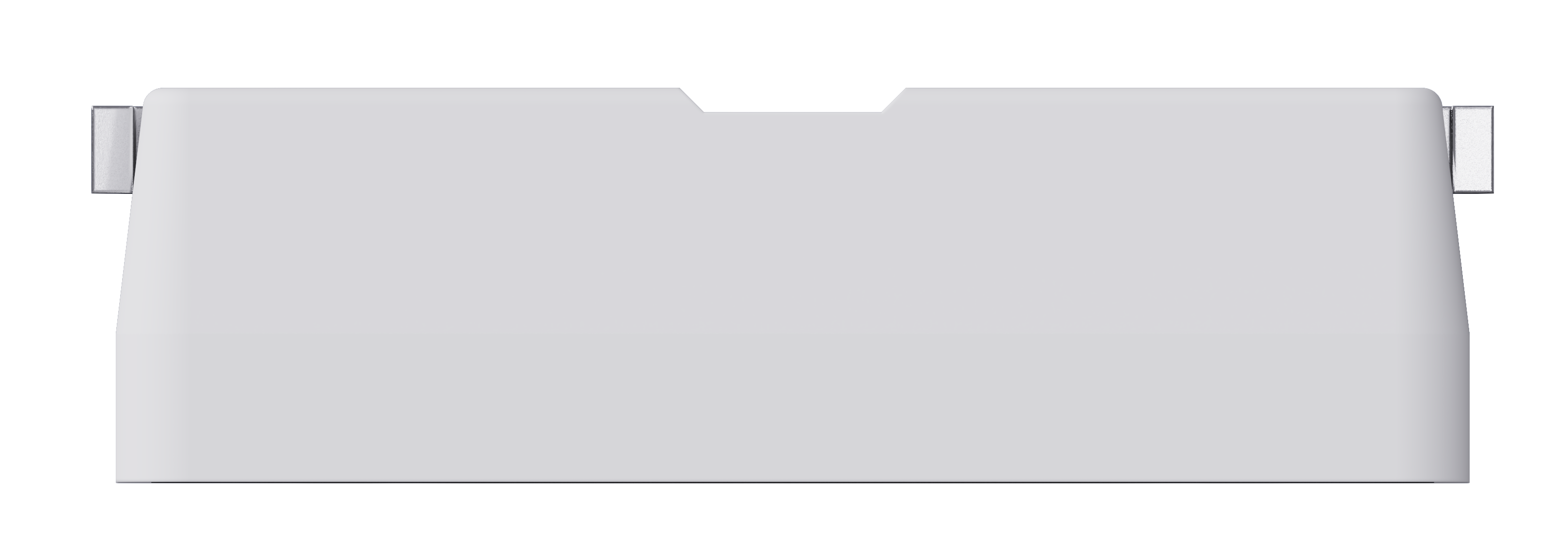

SIDE LED 5514

Designed for automotive exterior applications, Side View LED 5514 features an ultra-thin, side-emitting design ideal for slim light guide plates and space-efficient lighting modules.

More Downloads Request for Demo

Specifications

PV55142W17T50601

Product Type

 LED

Dimension (L x W x H)

 5.5 x 1.4 X 1.6 mm

Operating Temperature

 -40° ~ 110℃

Beam Angle

 120 °

Emitting Color

Amber (609-624 nm)

Brightness

Electrical

Luminous Flux (Φv)

Amber Typ. 36 lm

Electrical Power

 Typ. 1.02 W



Luminous Intensity(Iv)

Amber Typ. 11459 mcd

Forward Current (IF)

Amber Typ. 160 mA

Benefits

  • Designed for automotive exterior applications, Side View LED 5514 features an ultra-thin, side-emitting design ideal for slim light guide plates and space-efficient lighting modules.

Features

RoHS and REACH-compliant

MSL2a qualified according to JEDEC J-STD020

Applications

Ambient Lighting

Interior Lighting

Exterior Lighting
