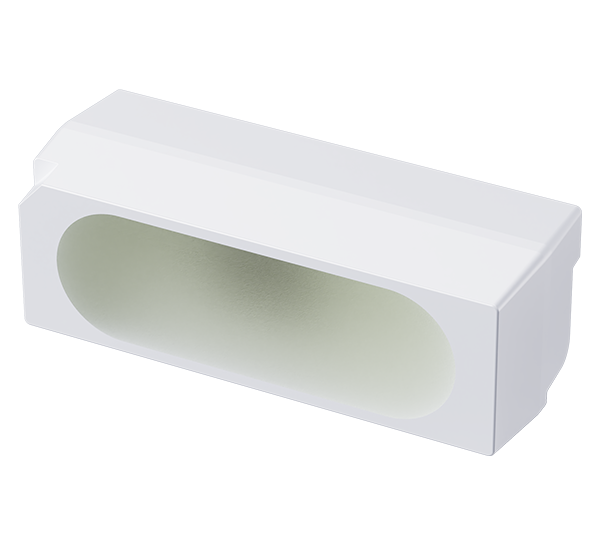

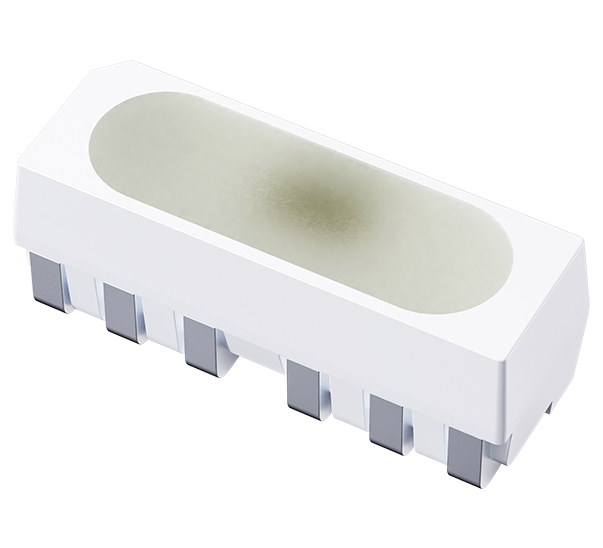

SIDE iCLed 4516

Side-view RGB ICLED, ideal for ambient light applications with an optical design that easily couples light into light guides and meets slim requirements.

More Downloads Request for Demo

Specifications

ISD4516VGBC1MAA2

Product Type

 iCLed

Dimension (L x W x H)

 4.5 x 1.6 X 1.7 mm

Operating Temperature

 -40° ~ 85℃

Beam Angle

 120 °

Emitting Color

Red (612-630 nm)

Green (565-575 nm)

Blue (450-480 nm)

White

Brightness

Electrical

Luminous Flux (Φv)

Red Typ. - lm

Electrical Power

 Typ. 0.4 W

Green Typ. - lm

Blue Typ. - lm

White Typ. - lm



Luminous Intensity(Iv)

Red Typ. 300 mcd

Forward Current (IF)

Red Typ. 12 mA

Green Typ. 1000 mcd

Green Typ. 12 mA

Blue Typ. 190 mcd

Blue Typ. 12 mA

White Typ. 1500 mcd

White Typ. 12 mA

Benefits

  • Side-view RGB ICLED, ideal for ambient light applications with an optical design that easily couples light into light guides and meets slim requirements.

Features

0.1W side view RGB iCLed, 12mA per channel

Single line signal transmission

MSL level 5

RoHS2.0 Compliant

Applications

Ambient Lighting

Gaming
