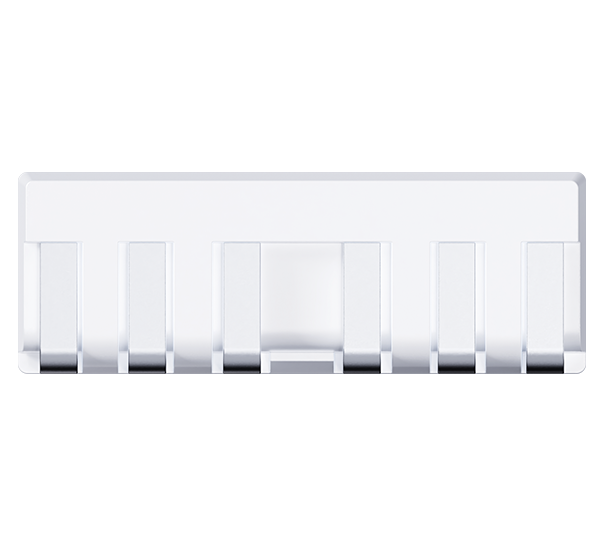

SIDE iCLed 4516

Side-view RGB ICLED, ideal for ambient light applications with an optical design that easily couples light into light guides and meets slim requirements.

More Downloads Request for Demo

Specifications

V64516VGBMFZ1

Product Type

 iCLed

Dimension (L x W x H)

 4.5 x 1.6 X 1.7 mm

Operating Temperature

 -40° ~ 105℃

Beam Angle

 120 °

Emitting Color

Red (612-630 nm)

Green (565-575 nm)

Blue (450-480 nm)

Brightness

Electrical

Luminous Flux (Φv)

Red Typ. - lm

Electrical Power

 Typ. 0.1 W

Green Typ. - lm

Blue Typ. - lm



Luminous Intensity(Iv)

Red Typ. 480 mcd

Forward Current (IF)

Red Typ. 20 mA

Green Typ. 1760 mcd

Green Typ. 20 mA

Blue Typ. 300 mcd

Blue Typ. 20 mA

Benefits

  • Side-view RGB ICLED, ideal for ambient light applications with an optical design that easily couples light into light guides and meets slim requirements.

Features

0.1W side view RGB LED, 20mA

Binning by RGB spec, single wavelength bin

AECQ102 qualified

MSL level 2a

RoHS2.0 and REACH-compliant

Applications

Ambient Lighting

Gaming

Related Products

TOP ISELED 3023

iCLed 5050

Mini iCLed 1212

TOP iCLed 2020

Documents & Tools

V64516VGBMFZ1
Datasheets

V64516VGBMFZ1
