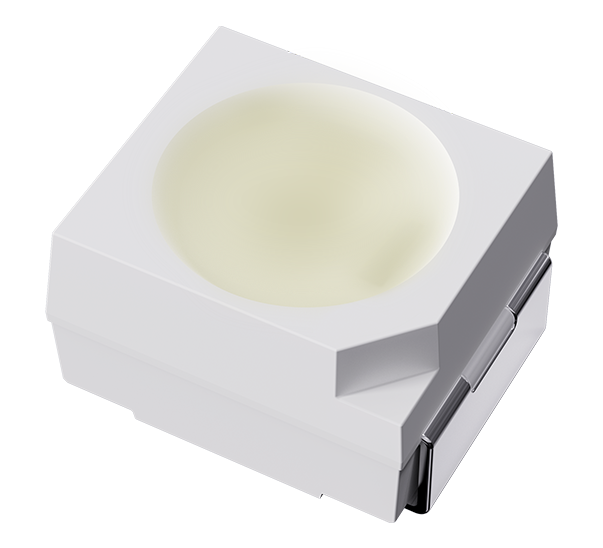

TOP LED 3528

Conventional PLCC2 product series covering various color selections and driving conditions.

More Downloads Request for Demo

Specifications

6SC3528G72E0CKZ1

Product Type

 LED

Dimension (L x W x H)

 3.5 x 2.8 X 1.9 mm

Operating Temperature

 -40° ~ 105℃

Beam Angle

 120 °

Emitting Color

True Green (513-545 nm)

Brightness

Electrical

Luminous Flux (Φv)

True Green Typ. - lm

Electrical Power

 Typ. 0.2 W



Luminous Intensity(Iv)

True Green Typ. 1500 mcd

Forward Current (IF)

True Green Typ. 20 mA

Benefits

  • Conventional PLCC2 product series covering various color selections and driving conditions.

Features

PLCC2 green, forward current: ≤ 30mA

AECQ102 qualified

MSL level 2a

RoHS2.0 and REACH-compliant

Applications

Ambient Lighting

Interior Lighting
