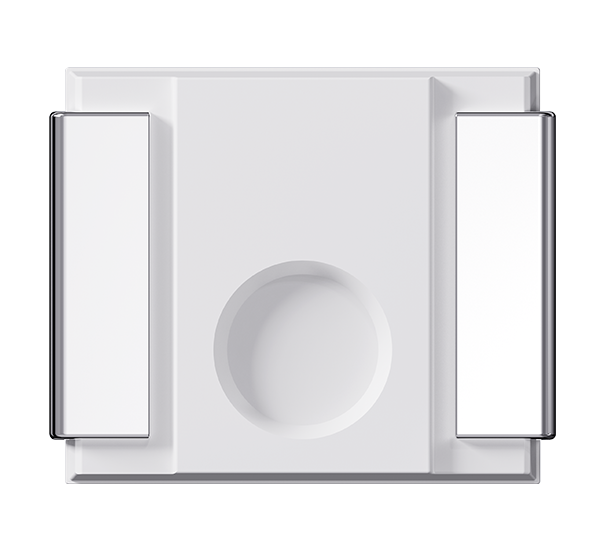

TOP LED 3528

Conventional PLCC2 product series covering various color selections and driving conditions.

More Downloads Request for Demo

Specifications

6SC3528W32E0WKZC

Product Type

 LED

Dimension (L x W x H)

 3.5 x 2.8 X 1.9 mm

Operating Temperature

 -40° ~ 105℃

Beam Angle

 120 °

Emitting Color

White

Brightness

Electrical

Luminous Flux (Φv)

White Typ. - lm

Electrical Power

 Typ. 0.1 W



Luminous Intensity(Iv)

White Typ. 2000 mcd

Forward Current (IF)

White Typ. 20 mA

Benefits

  • Conventional PLCC2 product series covering various color selections and driving conditions.

Features

PLCC2 white Forward current: ≦ 30mA

AECQ102 qualified

MSL level 2a

RoHS2.0 and REACH-compliant

Applications

Ambient Lighting

Interior Lighting
